BIKE+ RIEMENANTRIEB



VELLO BIKE+, THE FIRST SELF-CHARGING ELECTRIC FOLDING BIKE

VELLO BIKE+ is the lightest and most compact electric folding bike in its class! Top-quality components combined with new technologies, an exclusive and award-winning design, and a variety of specially developed innovations guarantee a comfortable ride in the city.

100% assembled & ready to ride upon delivery.

OPTIONAL with Schlumpf drive

Thanks to the intelligent motor control, the VELLO Bike+ does not need a gear shift at speeds from 0-25km/h. Even slopes up to 8% (very rare in urban areas) can be handled without problems.

Additionally, we offer a 2-gear-transmission to ride mechanically over 25km/h at a comfortable cadence (Schlumpf Speed Drive) or to be able to ride up steep hills with ease (Schlumpf Mountain Drive).

The Schlumpf drive is an ultra-flat planetary transmission mounted on the bottom bracket like a chainwheel with a transmission ratio of 1:1,65 for the Schlumpf Speed Drive or with a transmission ratio of 2,5:1 for the Schlumpf Mountain Drive.

TECHNICAL DATA & FEATURES

• Frame: Multisize, unisex, chromoly steel/ shock absorbent with elastomer-magnet folding
• Color: Anthracite
• Handlebar, grips: Folding handlebars (VELLO BIKE design) with ergonomic grips
• Saddle: Selle Royal Viento, foam matrix
• Seat post: Satori alloy 30,9 mm x 500 mm
• Stem riser: Fully adjustable height
• Gear system: Optional Schlumpf Speed Drive gear system up to 1:1,65 ratio or Schlumpf Mountain Drive gear system, ratio 2,5:1
• Drive: Belt, Gates Carbon CDX
• Brakes: Shimano hydraulic disc brake
• Tires: 20’’ Schwalbe Marathon Original 40-406
• Pedals: Full aluminium folding pedals
• Bell: light and elegant
• Weight: 13,9 kg (approx., without pedals, +/- 5%)
• Folded size: H: 57 cm x L: 79 cm x W: 29 cm, (H: 22 in x L: 31 in x W: 11 in)
• Maximum permissible weight: 125 kg/276 lbs
• Motor: 250 W
• Max. speed: 25 km/h max. with motor assistance and up to 40 km/h manually using the optional Schlumpf speed drive gear system
• Battery life cycle: >1,000 cycles
• Range: From approx. 30-50 km (31 miles) in Turbo mode to theoretically unlimited range using the self-charging technology

Scope of delivery includes a standard charger (type F, SchuKo, EU) and reflectors.



BIKE+ TITAN





VELLO BIKE+, THE FIRST SELF-CHARGING ELECTRIC FOLDING BIKE

 VELLO BIKE+ is the lightest and most compact electric folding bike in its class! Top-quality components combined with new technologies, an exclusive and award-winning design, and a variety of specially developed innovations guarantee a comfortable ride in the city.

100% assembled & ready to ride upon delivery.

OPTIONAL mit SCHLUMPF DRIVE

Thanks to the intelligent motor control, the VELLO Bike+ does not need a gear shift at speeds from 0-25km/h. Even slopes up to 8% (very rare in urban areas) can be handled without problems.

Additionally, we offer a 2-gear-transmission to ride mechanically over 25km/h at a comfortable cadence (Schlumpf Speed Drive) or to be able to ride up steep hills with ease (Schlumpf Mountain Drive).

The Schlumpf drive is an ultra-flat planetary transmission mounted on the bottom bracket like a chainwheel with a transmission ratio of 1:1,65 for the Schlumpf Speed Drive or with a transmission ratio of 2,5:1 for the Schlumpf Mountain Drive.

TECHNICAL DATA & FEATURES

• Frame: Multisize, unisex, titanium frame, chromoly fork/shock absorbent with elastomer-magnet folding
• Color: Silver brushed
• Handlebar, grips: Folding handlebars (VELLO BIKE design) with ergonomic grips
• Saddle: Selle Royal Viento, foam matrix
• Seat post: Satori alloy 30,9 mm x 500 mm
• Stem riser: Fully adjustable height
• Gear system: Optional Schlumpf Speed Drive gear system up to 1:1,65 ratio or Schlumpf Mountain Drive gear system, ratio 2,5:1
• Drive: Belt, Gates Carbon CDX
• Brakes: Shimano hydraulic disc brake
• Tires: 20’’ Kojak
• Pedals: Full aluminium folding pedals
• Bell: light and elegant
• Weight: 11,9 kg (approx., without pedals, +/- 5%)
• Folded size: H: 57 cm x L: 79 cm x W: 29 cm
• (H: 22 in x L: 31 in x W: 11 in)
• Maximum permissible weight: 125 kg/276 lbs
• Motor: 250 W
• Max. speed: 25 km/h max. with motor assistance and up to 40 km/h manually using the optional Schlumpf speed drive gear system
• Battery life cycle: >1,000 cycles
• Range: From approx. 30-50 km (31 miles) in Turbo mode to theoretically unlimited range using the self-charging technology

SPEEDSTER TITANIUM

SPEED. SPEEDIER. SPEEDSTER!

Ultra-light racing-bike components, and ultra light titanium frame, narrow high-pressure tires, racing-bike handlebars, and a 10-speed Shimano105 gear system deliver an aerodynamic riding experience with minimal rolling resistance. Speedster won the RedDot Design Award: “best of the best.“

100% assembled & ready to ride upon delivery.

 TECHNICAL DATA & FEATURES

• Frame: Multisize, unisex, titanium frame, chromoly fork/shock absorbent with elastomer-magnet folding
• Color: Silver brushed
• Handlebar, grips: Racing-bike handlebars, Brooks honey brown bar tape
• Saddle: Brooks honey brown leather saddle
• Seat post: Satori alloy 30.9 mm x 500 mm
• Stem riser: Fully adjustable height (VELLO BIKE design)
• Gear system: Shimano 105-series, 10-speed rear derailleur, non-electric
• Shifters: STI integrated shifters and brake levers, microSHIFT 10-speed
• Front chainring: 54T with double chain guard
• Cassette: 11-32 T (chain)
• Brakes: Caliper brake Shimano 105
• Tires: 20’’ plus Schwalbe Durano 28-451
• Pedals: MKS clip-on pedals
• Bell: light and elegant
• Weight: 9,9 kg (approx., without pedals, +/- 5%)
• Folded size: H: 57 cm x L: 79 cm x W: 29 cm, (H: 22 in x L: 31 in x W: 11 in)
• Maximum permissible weight: 125 kg/276 lbs



ALFINE 11 TITANIUM

THE CLEAN COMPANION WITH STYLE

 Glide quietly through the city with the belt-driven VELLO Alfine. Conquer urban canyons with its practical wide-range Shimano Alfine 11 internal gear hub.

100% assembled & ready to ride upon delivery.

TECHNICAL DATA & FEATURES

• Frame: Multisize, unisex, titanium frame, chromoly fork/shock absorbent with elastomer-magnet folding
• Color: Silver brushed
• Handlebar, grips: Folding handlebars (VELLO BIKE design) with ergonomic grips
• Saddle: Selle Royal Viento, foam matrix
• Seat post: Satori alloy 30.9 mm x 500 mm
• Stem riser: Fully adjustable height
• Gear system: Alfine 11-speed internal gear hub, non-electric
• Shifters: Alfine 11 Rapidfire
• Drive: Belt, Gates Carbon CDX
• Brakes: Shimano hydraulic disc brakes
• Tires: 20’’ Kojak
• Pedals: Full aluminium folding pedals
• Bell: light and elegant
• Weight: 11,9 kg (approx., without pedals, +/- 5%)
• Folded size: H: 57 cm x L: 79 cm x W: 29 cm, (H: 22 in x L: 31 in x W: 11 in)
• Maximum permissible weight: 125 kg/276 lbs



ALFINE 11 CROMO

THE CLEAN COMPANION WITH STYLE

Glide quietly through the city with the belt-driven VELLO Alfine. Conquer urban canyons with its practical wide-range Shimano Alfine 11 internal gear hub.

100% assembled & ready to ride upon delivery.

TECHNICAL DATA & FEATURES

• Frame: Multisize, unisex, chromoly steel/ shock absorbent with elastomer-magnet folding
• Color: Anthracite
• Handlebar, grips: Folding handlebars (VELLO BIKE design) with ergonomic grips
• Saddle: Selle Royal Viento, foam matrix
• Seat post: Satori alloy 30.9 mm x 500 mm
• Stem riser: Fully adjustable height
• Gear system: Alfine 11-speed internal gear hub, non-electric
• Shifters: Alfine 11 Rapidfire
• Drive: Belt, Gates Carbon CDX
• Brakes: Shimano hydraulic disc brakes
• Tires: 20’’ Schwalbe Marathon Original 40-406
• Pedals: Full aluminium folding pedals
• Bell: light and elegant
• Weight: 12,9 kg (approx., without pedals, +/- 5%)
• Folded size: H: 57 cm x L: 79 cm x W: 29 cm (H: 22 in x L: 31 in x W: 11 in)
• Maximum permissible weight: 125 kg/276 lbs

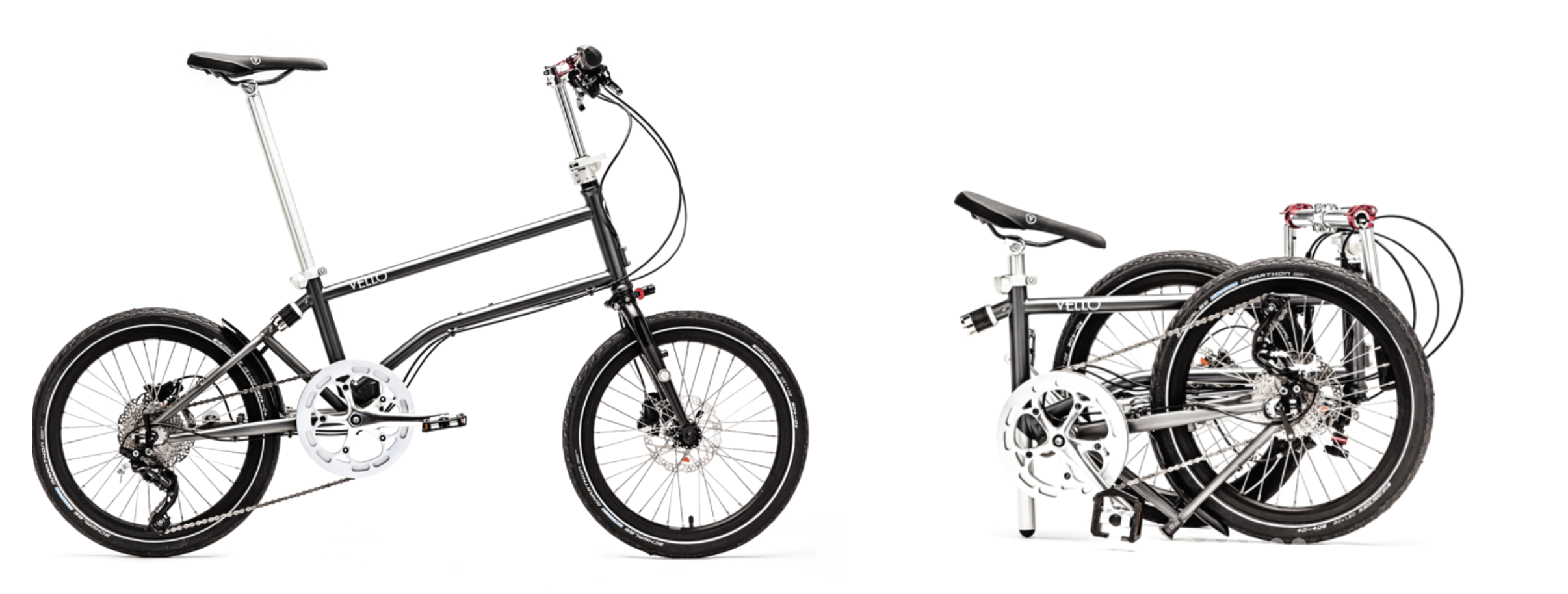

ROCKY CROMO

THE MULTI-TERRAIN FOLDING BIKE FOR ALL YOUR TRIPS

Rocky is made to smooth out the jolts of the city jungle. With its Shimano XT 10-speed top-quality trekking bike components, you can easily avoid traffic congestion by choosing shortcuts through parks and over rocky paths and steep hills.

100% assembled & ready to ride upon delivery.

TECHNICAL DATA & FEATURES

• Frame: Multisize, unisex, chromoly steel/ shock absorbent with elastomer-magnet folding
• Color: Anthracite
• Handlebar, grips: Folding handlebars (VELLO BIKE design) with ergonomic grips
• Saddle: Selle Royal Viento, foam matrix
• Seat post: Satori alloy 30.9 mm x 500 mm
• Stem riser: Fully adjustable height
• Gear system: Shimano Deore XT 10-speedt, non-electric
• Shifters: Shimano Deore Rapidfire (right)
• Drive: Chain
• Brakes: Shimano hydraulic disc brakes
• Tires: 20’’ Schwalbe Marathon Original 40-406
• Pedals: Full aluminium folding pedals
• Bell: light and elegant
• Weight: 11,9 kg (approx., without pedals, +/- 5%)
• Folded size: H: 57 cm x L: 79 cm x W: 29 cm
• (H: 22 in x L: 31 in x W: 11 in)
• Maximum permissible weight: 125 kg/276 lbs
